Product Description
Diagnose vehicle problems quickly and confidently with the V520 OBD2 Car Scanner Diagnostic Tool. Designed for both professional mechanics and DIY vehicle owners, this advanced diagnostic scanner reads and clears engine fault codes, displays live vehicle data, and helps identify issues before they become costly repairs.
Compatible with most OBDII and EOBD compliant petrol and diesel vehicles, the V520 supports multiple communication protocols, making it suitable for a wide range of cars, SUVs, 4WDs, utes and light commercial vehicles. Simply plug the scanner into your vehicle’s OBD2 port—no batteries or complicated setup required.
The large 2.8-inch colour display provides easy-to-read menus and real-time engine information including engine RPM, coolant temperature, vehicle speed, fuel system status, oxygen sensor readings, battery voltage, fuel trims and much more. It also displays freeze frame data, I/M readiness status and allows you to reset the Check Engine Light after repairs.
With a built-in database containing over 35,000 diagnostic trouble codes, the V520 helps you identify engine faults accurately and efficiently. Supporting 10 languages and offering an intuitive user interface, this versatile scanner is an essential diagnostic tool for vehicle maintenance, servicing and pre-purchase inspections.
Note: Vehicle functions available may vary depending on the vehicle manufacturer, model and year.

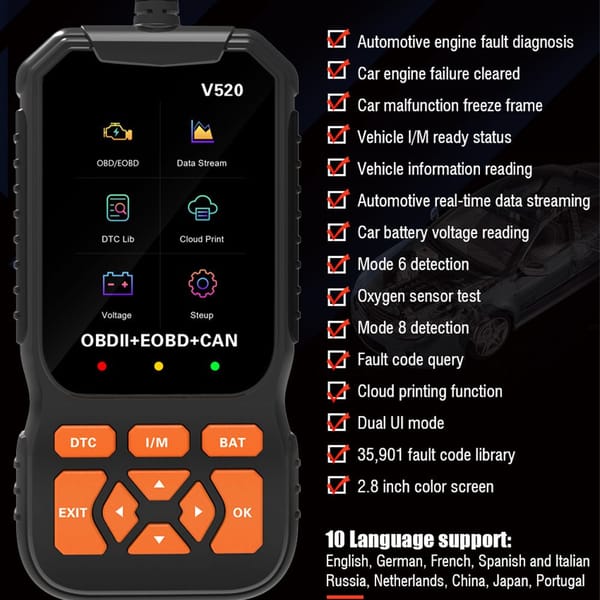

Features
- Professional V520 OBD2 and EOBD vehicle diagnostic scanner.

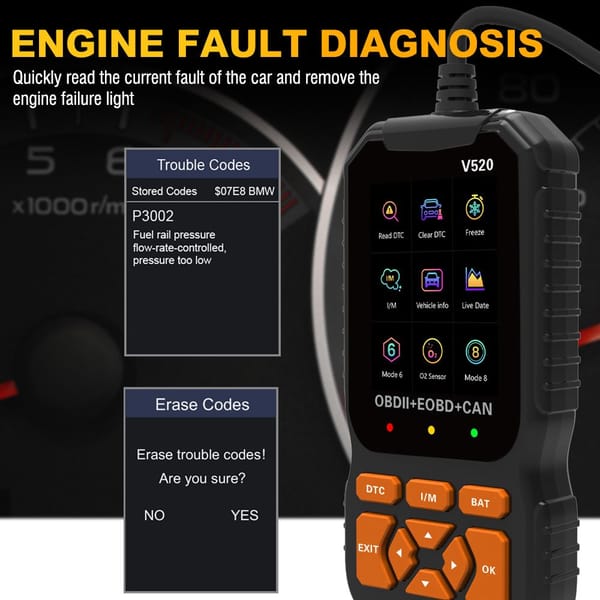

- Reads and clears engine fault codes (DTCs).
- Resets the Check Engine (MIL) warning light after repairs.

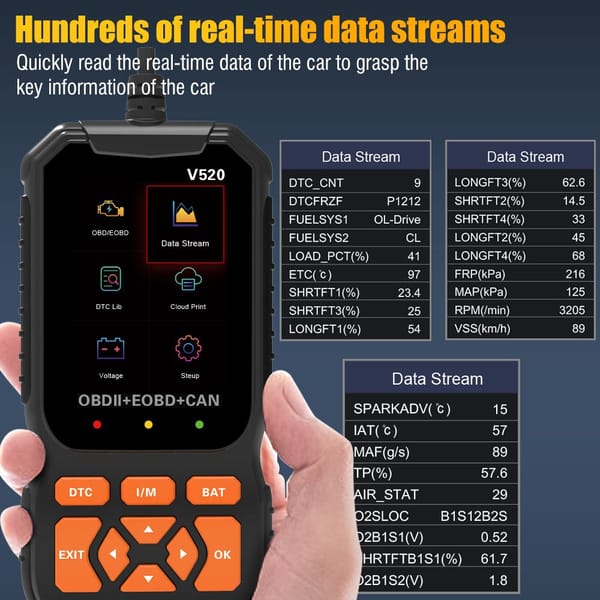

- Displays live engine and vehicle data in real time.

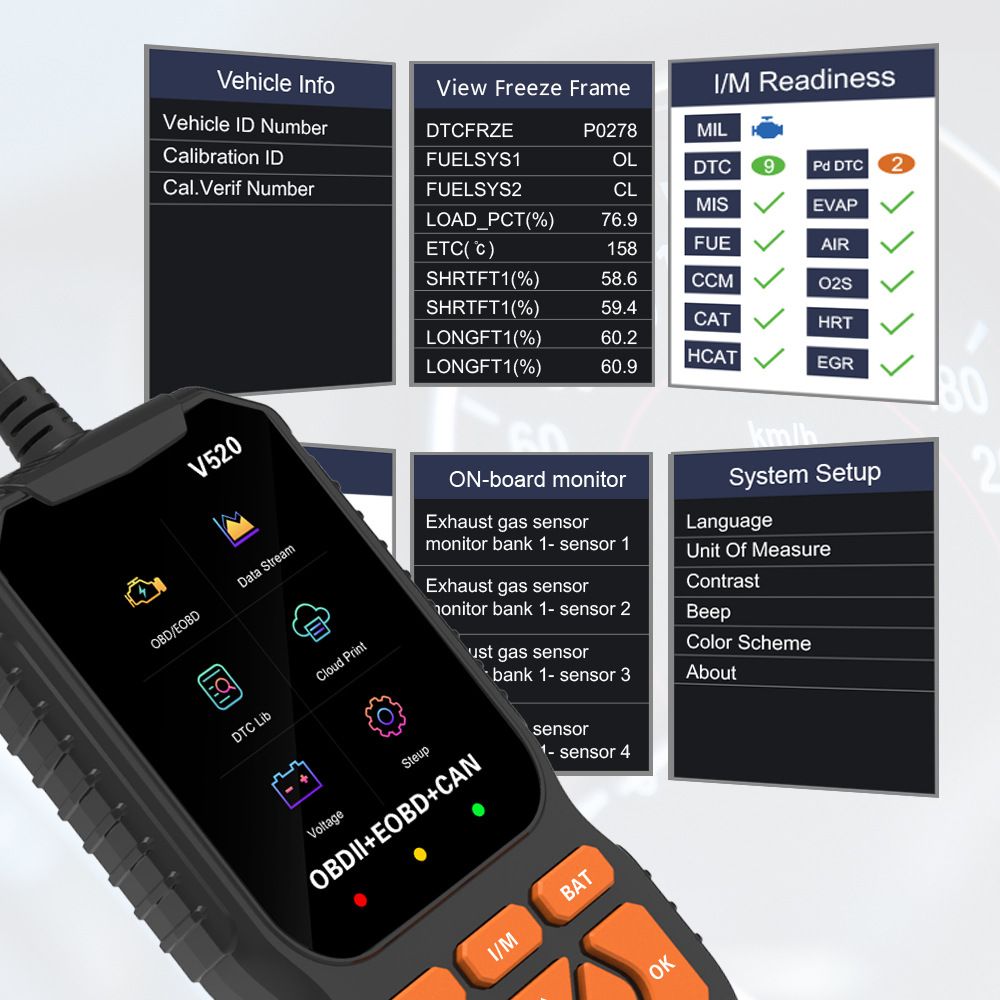

- Reads Freeze Frame data for accurate fault diagnosis.
- Checks I/M Readiness status for emissions testing.
- Displays battery voltage monitoring.
- Supports Oxygen Sensor testing and Mode 6 diagnostics.
- Vehicle information retrieval including VIN where supported.
- Built-in database with over 35,900 fault codes.
- Large 2.8-inch full colour display with easy-to-use interface.
- Supports multiple international OBDII and EOBD communication protocols.
- Displays engine RPM, coolant temperature, vehicle speed, fuel trims, throttle position, air intake temperature, fuel pressure and more.
- Plug-and-play operation with no batteries required.
- Suitable for professional workshops and DIY vehicle owners.
- Supports 10 display languages.
- Compact, lightweight and easy to store in your vehicle.
Specifications
| Specification | Details |
|---|---|
| Product | V520 OBD2 Car Diagnostic Scanner |
| Diagnostic Functions | Read & Clear DTCs, Live Data, Freeze Frame, I/M Readiness, Battery Voltage, Oxygen Sensor Test, Mode 6, Vehicle Information |
| Display | 2.8 Inch Full Colour LCD Screen |
| Fault Code Database | 35,901+ Diagnostic Trouble Codes |
| Operating Voltage | DC 9V–16V |
| Operating Current | 36–54mA |
| Standby Current | 40mA |
| Main Processor | APM32E103VET6 (LQFP100) |
| Operating Temperature | -30°C to 70°C |
| Storage Temperature | -30°C to 70°C |
| Dimensions | 171 × 85 × 28 mm |
| Supported Protocols | SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN |
| Languages | English, German, French, Spanish, Italian, Russian, Dutch, Portuguese, Japanese and Chinese |
| Vehicle Compatibility | Most OBDII/EOBD Compliant Petrol and Diesel Vehicles |
Package Includes
- 1 × V520 OBD2 Car Diagnostic Scanner
- 1 × Integrated OBD2 Connection Cable
- 1 × User Manual
